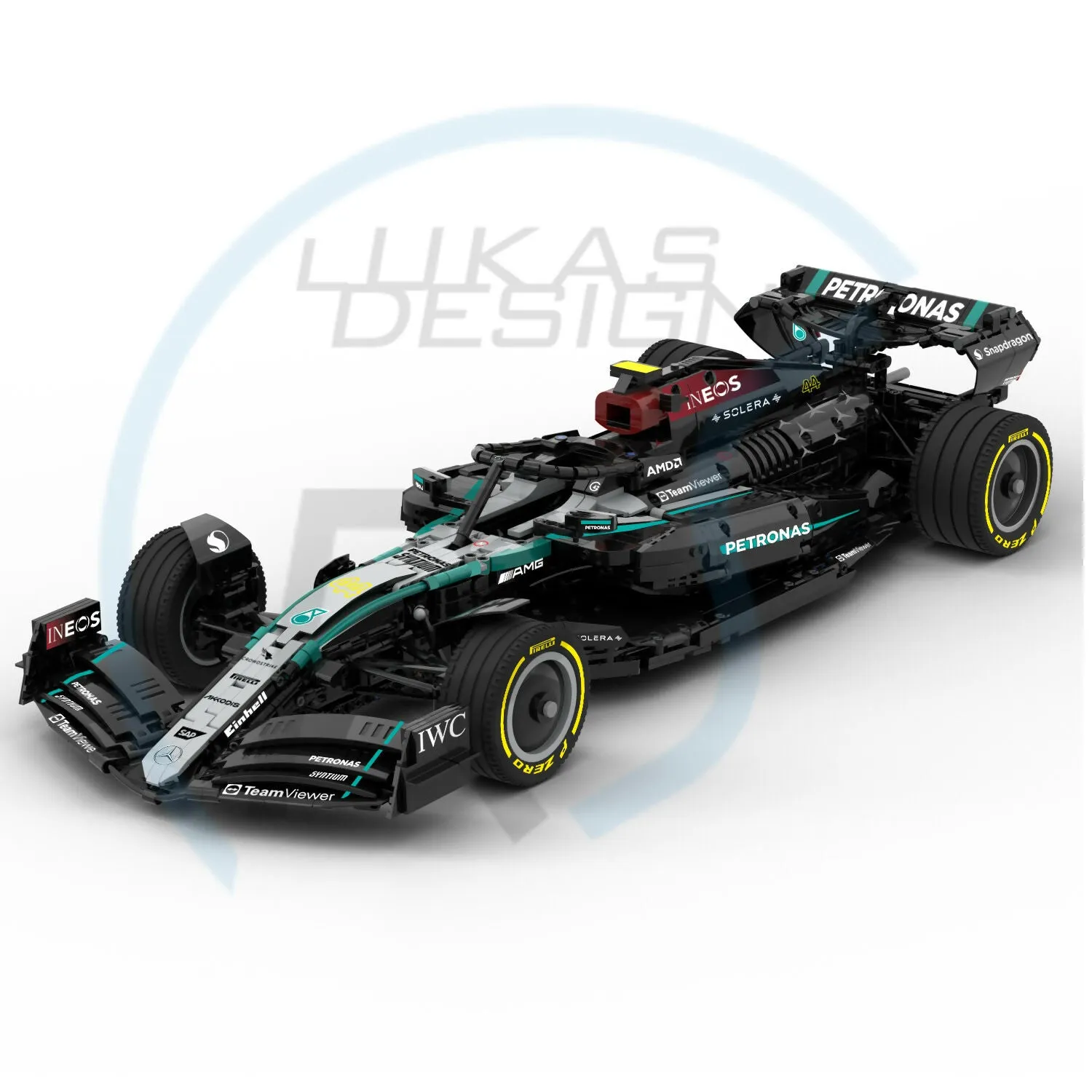

Mercedes F1 W15 1:8 Scale

This is first car of 2024 with third type of chassis. In 2024 main focus was put into recreating the real type of suspensions for every car. Mercedes like Aston Martin use push rod in front and rear section.

2024 wave brings new updates and ideas to the design. Some of the updates I added during the 2023 season but I took them further.

I also reworked rear wing its wider, the DRS flap is bigger, there are also changes to the diffuser and overall floor section.

Front wing now has 4 layers of winglets like in real car the front section also has been changed. The sloping into the front wing is shaped differently to also catch curves more accurate.

In the chassis I also recreated imitation of whole ERS system, I added battery, MGU-H, MGU-K, Turbine and also kept fuel tank on top.


Panel 3x13 still doesnt exist in LBG color which is surprising but it has to be covered by sticker anyway.

Dimensions 69 x 25 x 13 cm

Weight 3,0 kg

It features:
- front and rear push rod suspension
- fake v6 engine with ERS imitation
- removable front wing but not very straightforward as now its fixed more into the front section but still possible
- removable engine cover,
- removable headrest system
- drs activate by lever in cockpit
- steering (tires winglets also turns)
- hidden details like tank, seat-belts, radiators, venturi tunnels, ERS ect
- HOG (hidden in default)

The instruction has been done in Stud.io in PDF.
